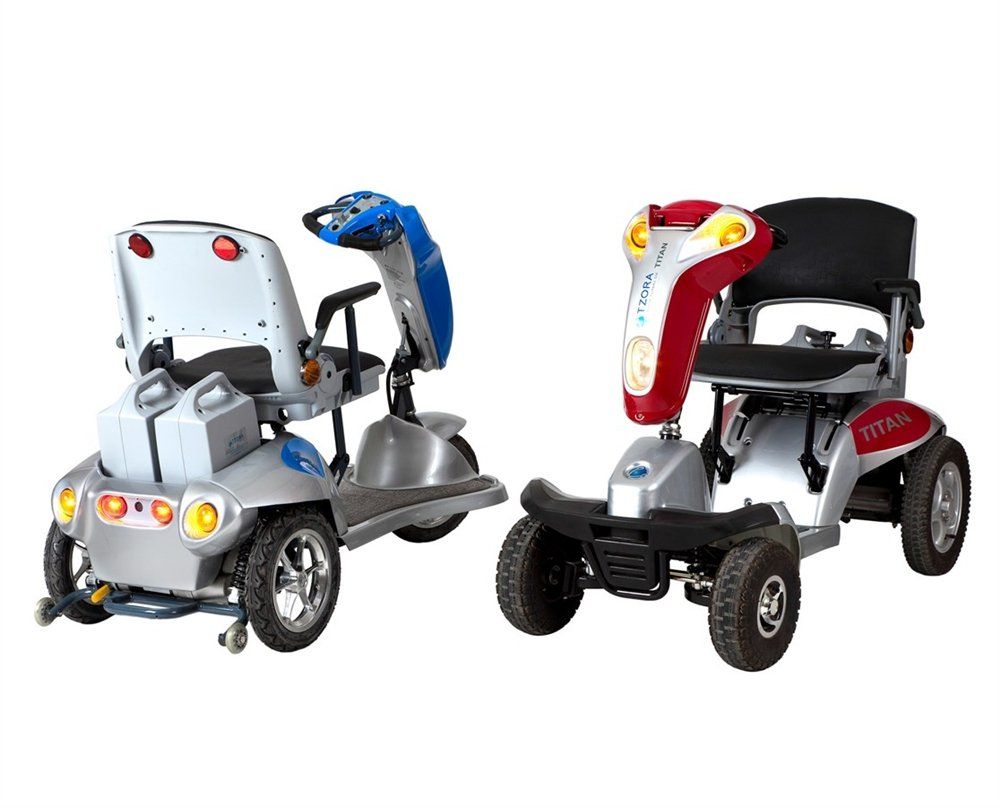

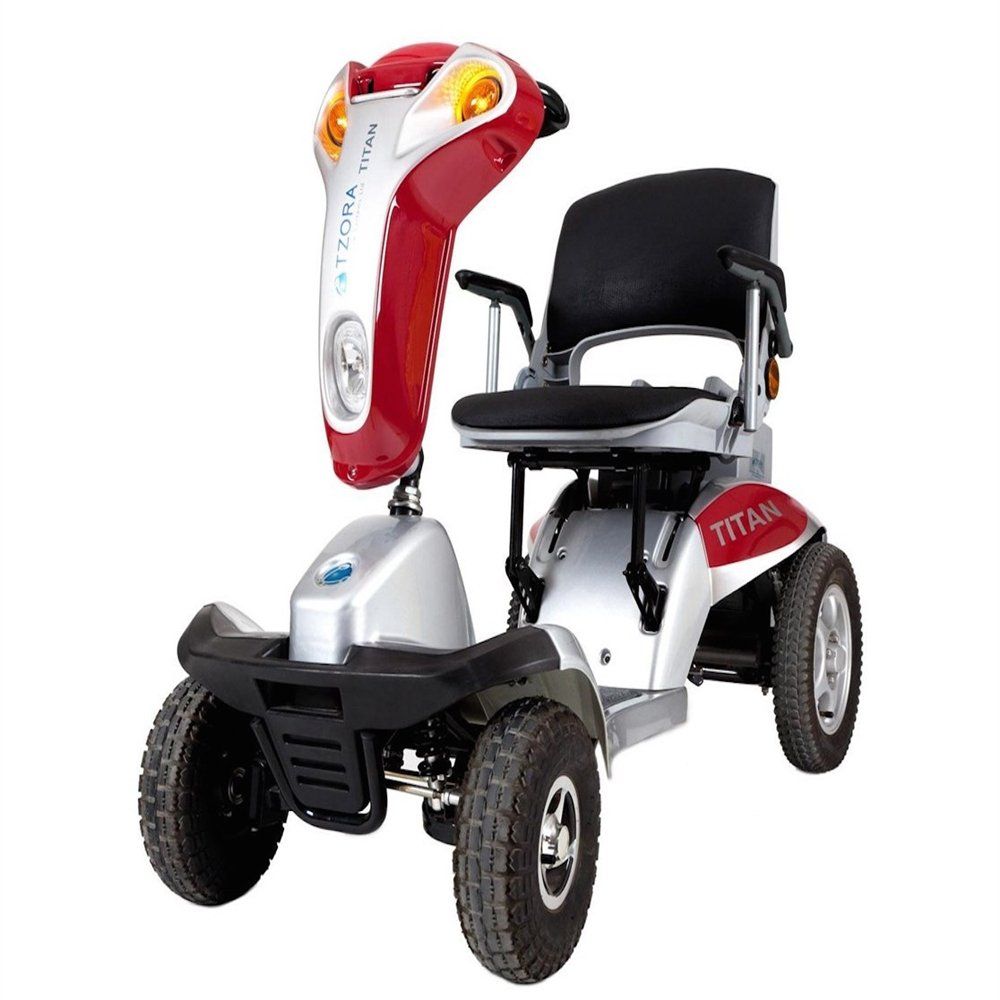

Titan Lead Battery Folding Scooter
The Titan Hummer Lithium 4 Wheels-100 kms- the best and only all-terrain folding scooter in its class.
If you wish to check these descriptions against the dimensions of your car, please click on the following link:
PDF document to download:
CHARACTERISTICS : of the scooter Titan Lead batteries
Weight 72 kg of the scooter Titan Lead batteries:
Color Red & Gray
Warranties 1 year, 6 months The batteries
Equipment Standard Equipment:
- Removable rear basket.
- Removable basket support.
- Charger 12V.
- Left mirror
Type of engine :
- Maximum engine power: 1440 watts
- Reduced motor with differential
- Electromagnetic brake which slows down the scooter when the accelerator is released
- With a freewheel position
Description of the control panel:
- The controls are easy to access and intuitive.
- Dual position throttle lever, forward and reverse.
- Battery gauge
- Headlight button & rear light + reflector.
- Turn signal + warning button.
- Horn button.
- Speed button tortoise or hare.
- Speed variator button.

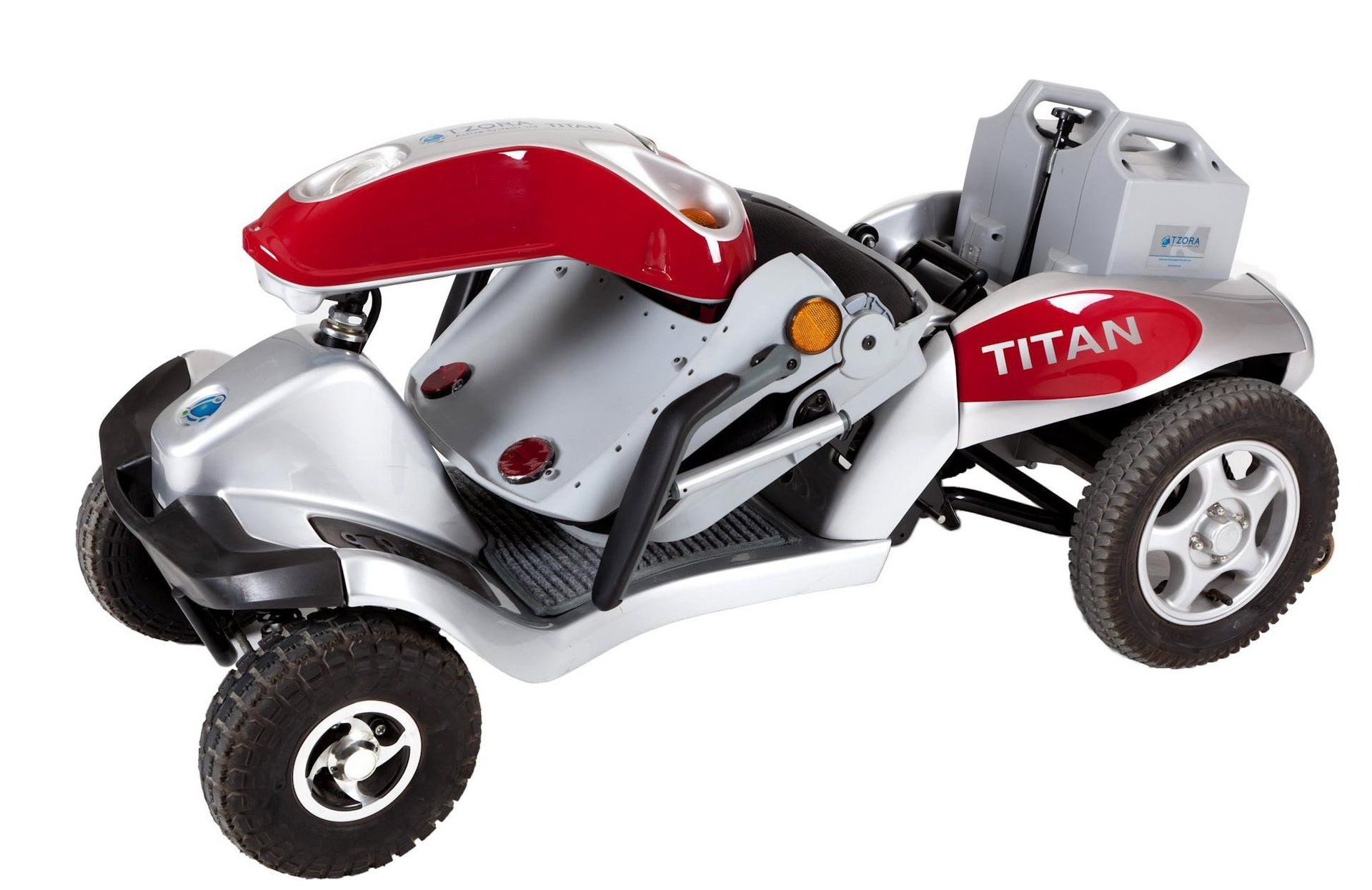

- Folds and disassembles quickly in seconds

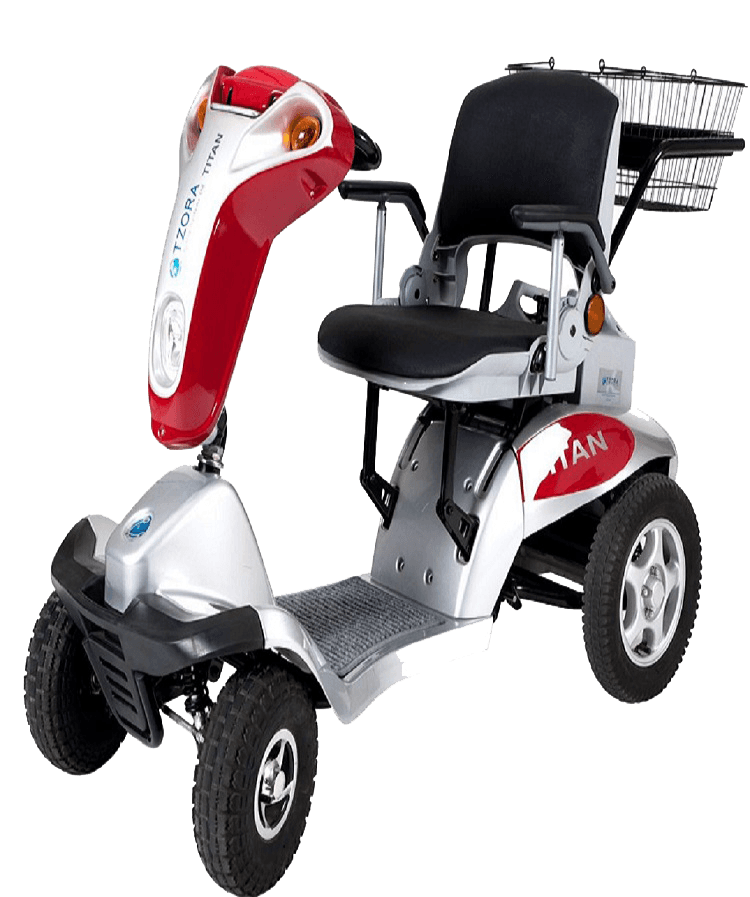

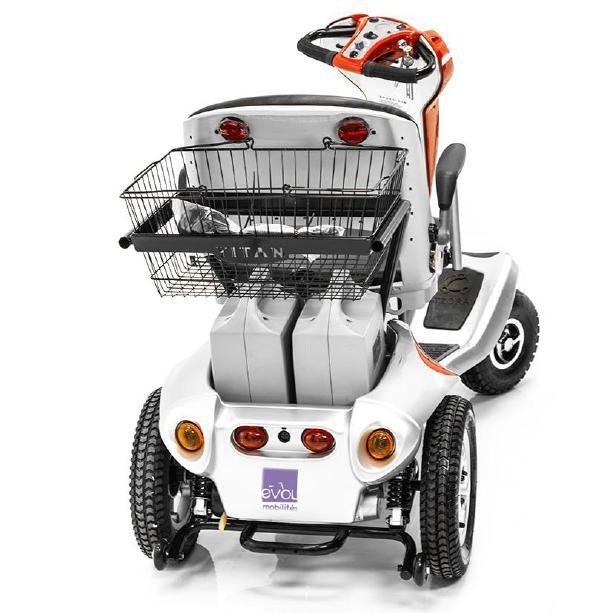

- Equipped with a removable rear basket
- Maximum basket load: 7kg
Dimensions of the scooter:
- Passage of standard doors
- Length =
1370mm.
- Width = 620mm.
- Height = 950mm.
Dismountable in 2 parts:
- Tool-free disassembly
- Dimensions part 1 front of the detached scooter:
- Front frame weight (Including seat) 27Kg
- Length : 990mm.
- Lenght : 610mm.
- Height : 590mm.
- Dimensions part 2 rear of the detached scooter:
- Rear frame weight (excluding battery)
26Kg
- Length : 550mm.
- Lenght : 610mm.
- Height : 430mm.
Seat size:
- Foldable seat with memory foam
- Flip-up armrests
- Seat width = 450mm.
- Seat length = 450mm.
- Back height = 380mm.
- Seat height (floor-seat) = 570mm.
- Seat height from footrest = 380mm.
Wheel Size:

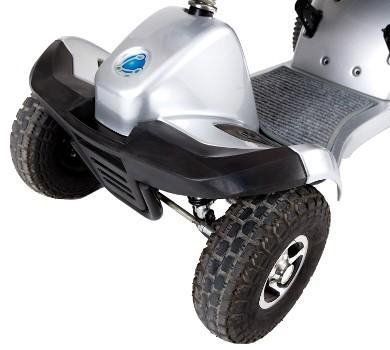

- 4 fully suspended and adjustable wheels.
- Studded tires that grip on all types of ground
- Front wheel size =Diameter 260 x 80 mm Lg.
- Rear wheel sizes = Diameter 340 x 65 mm Lg.
- Ground clearance = 115mm.
- Turning radius = 1400mm.
Max speed:
- Maximum forward speed: 9.9 km/h.
- Maximum reverse speed: 6 km/h
- Climbing ability: 18%
Average Autonomy:
- 25 to 30km (average and variable data depending on the weight transported and the conditions of use).
- Loading time :
4:00 a.m. at 80%
and of
6
at
10H at 100%.
- CE 12184 approval - Road approved.

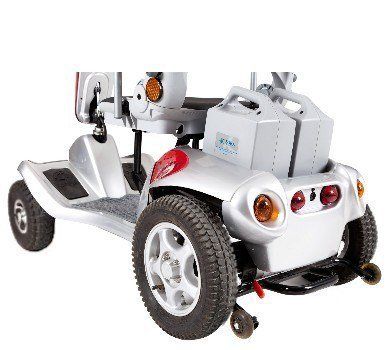

- Equipped with two anti-tilt castors at the back
- Anti-corrosion coating:

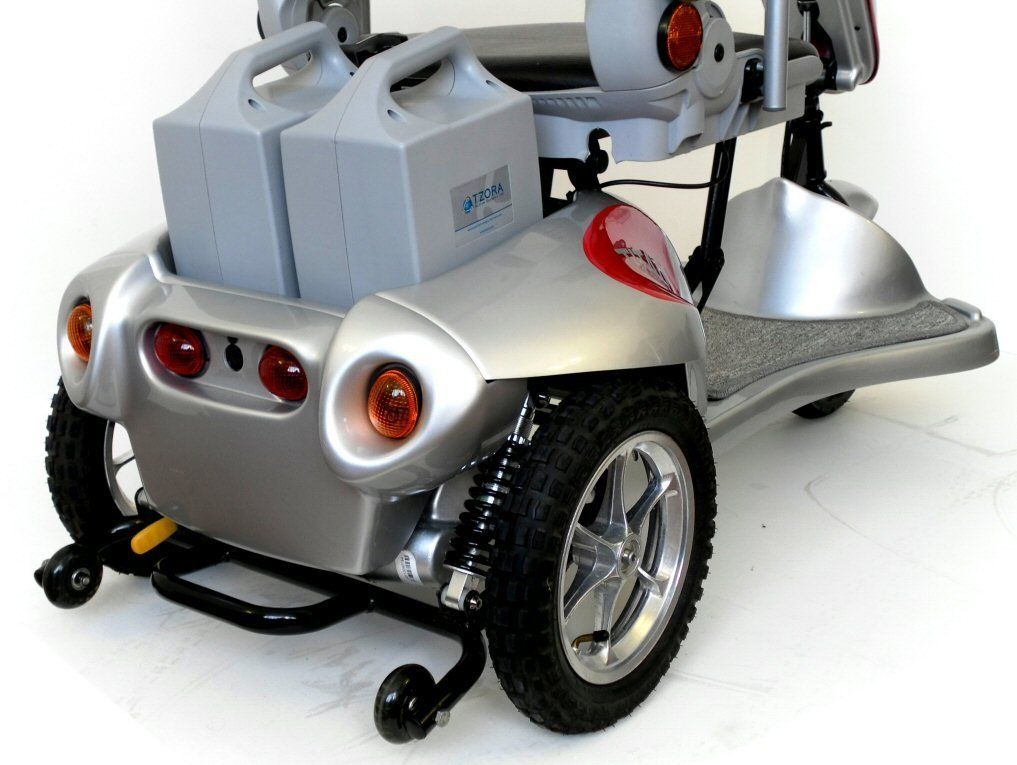

Lead batteries:
- Two removable lead batteries: 12Vlt - 26Ah
- Connected in series or 24 Vlt/26 Ah
- Weight 2 x 9.5kg= 19kg.
- 110/220V charger
- It is possible to charge the batteries independently of the scooter, thanks to the external charging kit.
Weight scooter Titan 4. Wheels lead batteries:
- Bare weight: 53kg without the batteries and the rear basket.
- Weight of removable lead batteries: 2 x 9.5kg= 19kg.
- Average autonomy: 20 to 25km
- Weight of removable rear basket support and removable rear basket: 7 Kg.
- Weight Total including both batteries: 72 Kg.
- Max weight. of the user: 136kg
Optional equipment:
- - Integral anti-puncture treatment of tyres.
- - Kit for charging the two batteries outside the scooter, this kit allows you to charge the two removable batteries without having to have the scooter. This allows you, for example, to charge the two batteries in your apartment and leave your scooter on the ground floor of your residence or vacation spot.
- - Car charging kit for two batteries, cigarette lighter socket type.
- - Right mirror
La conception pliable du TITAN Hummer-XL vous donne un véhicule portable qui vous emmènera où que vous soyez, peu importe la météo ou le terrain.
Même les pentes abruptes ne posent aucun problème à la haute performance Hummer-XL.
Avec sa suspension intégrale , ses gros pneus et son siège en mousse à mémoire de forme, le pneu Hummer-XL hautes performances offre une conduite incroyablement douce.
